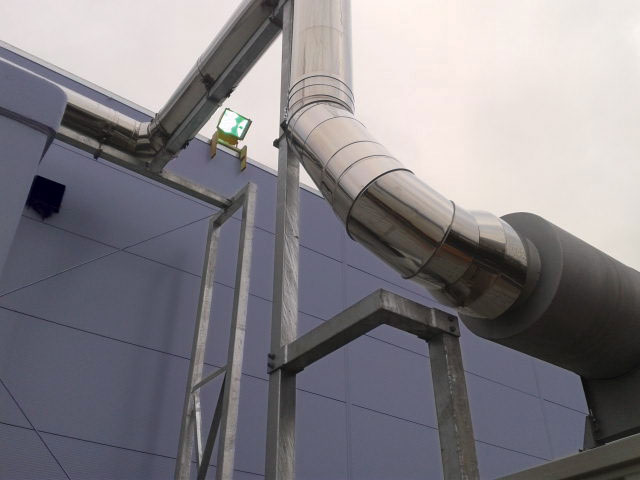

Our fully seam-welded flues cater for all necessary heat expansion and are designed with all the appropriate load-bearing and wind-resistant supports.

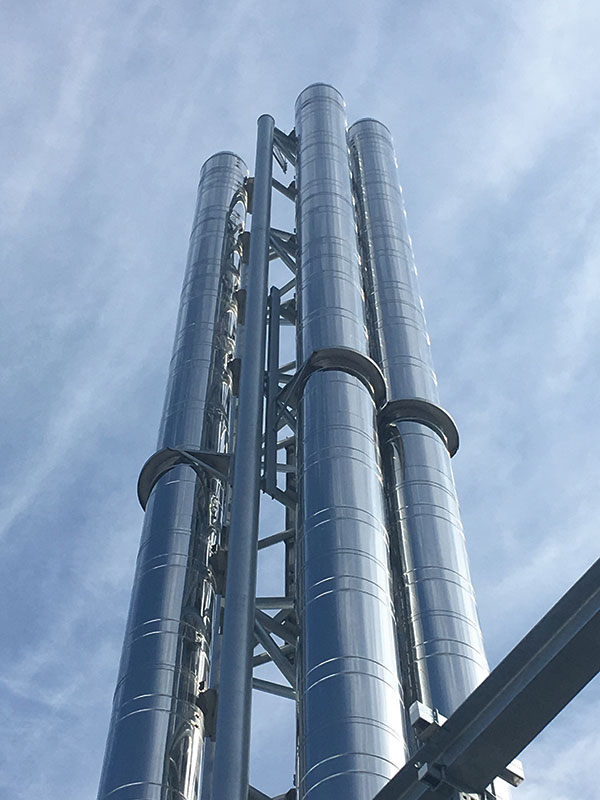

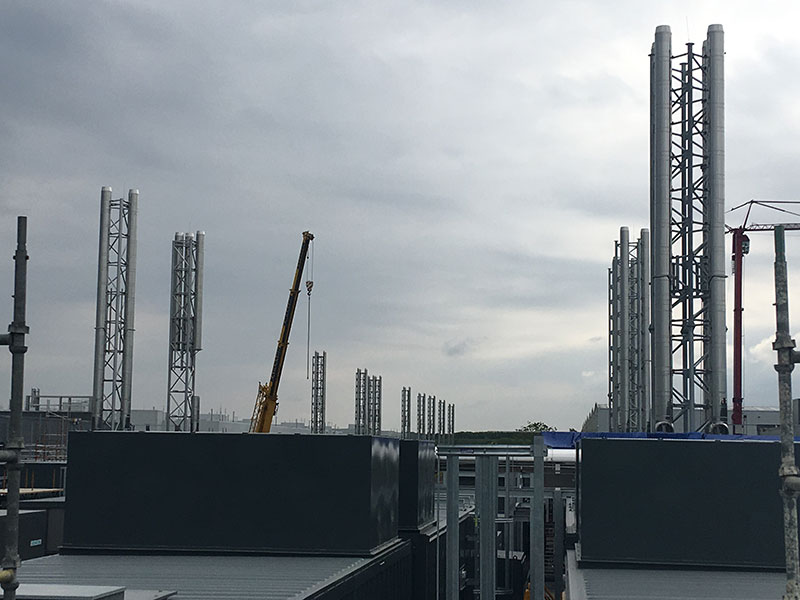

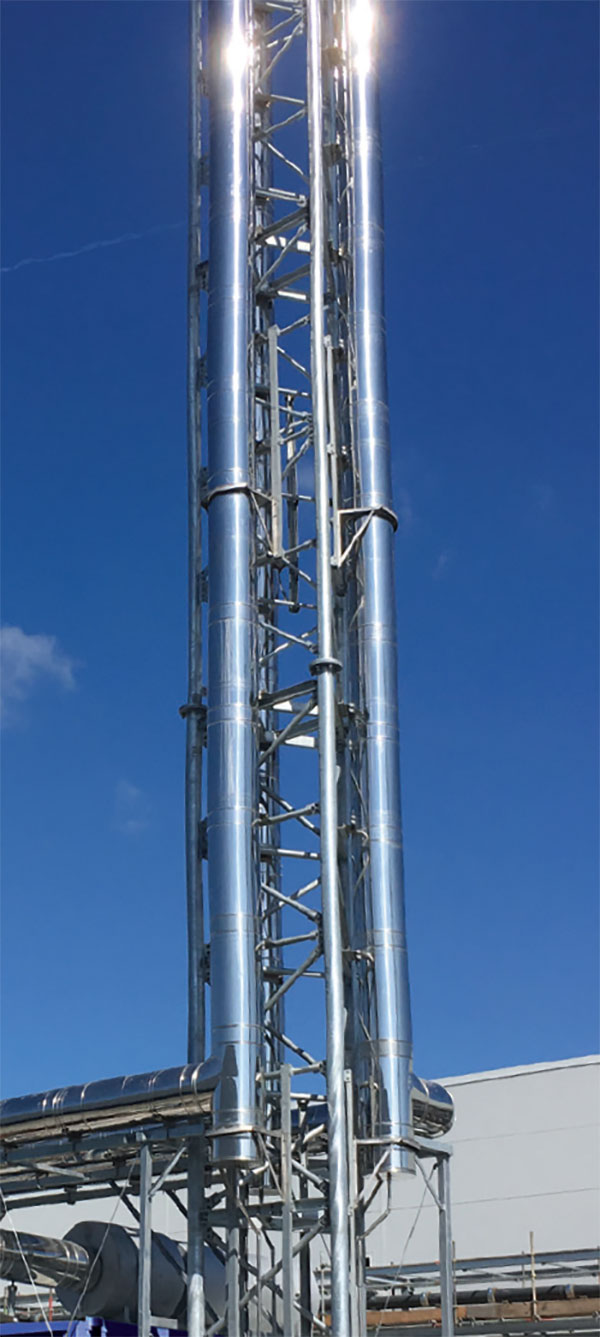

Our team work closely with certified structural engineering companies and can deliver bespoke self-supporting towers containing a specified number of flues.


Ranging from 25mm – 125mm, sample ports can be fitted to all installations and retrofitted to existing flues.


Using thermal breaks or firestop penetrations, our flue achieves ratings of EI 120 / EI 240 tested to EN1366-13.


Bespoke rain cowls can be installed to ensure minimal rainwater ingress.


We utilise the latest 3D software to provide a comprehensive design of our flues for incorporation into site models when required.

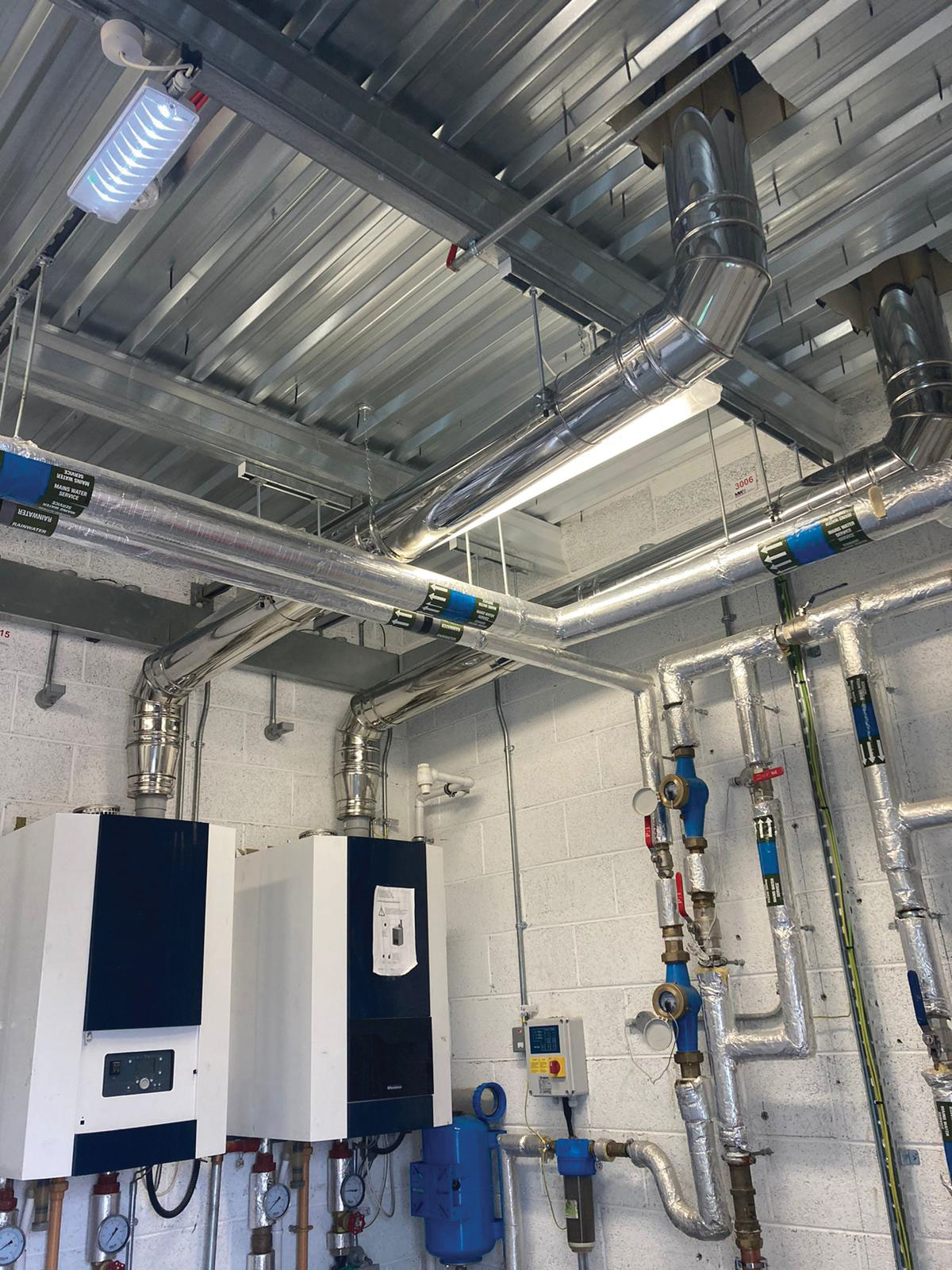

  • Industrial boilers and water heaters

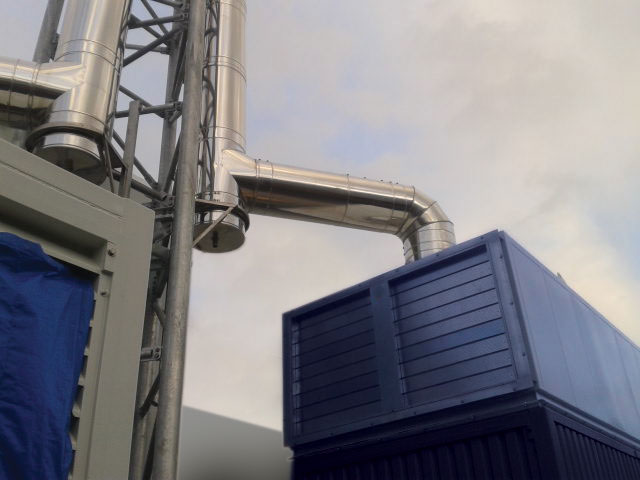

  • Standby & prime powered generators (diesel & gas)
  • CHP’s
  • Industrial appliances
  • Abatement Units
  • Bespoke Design to suit all requirements
  • Fire Resistance Rating EI 120 & EI 240
  • Thermal breaks & Firestops for firewall sealing
  • V band jointing system using high temperature sealant
  • Suitable for condensing & high temperature systems

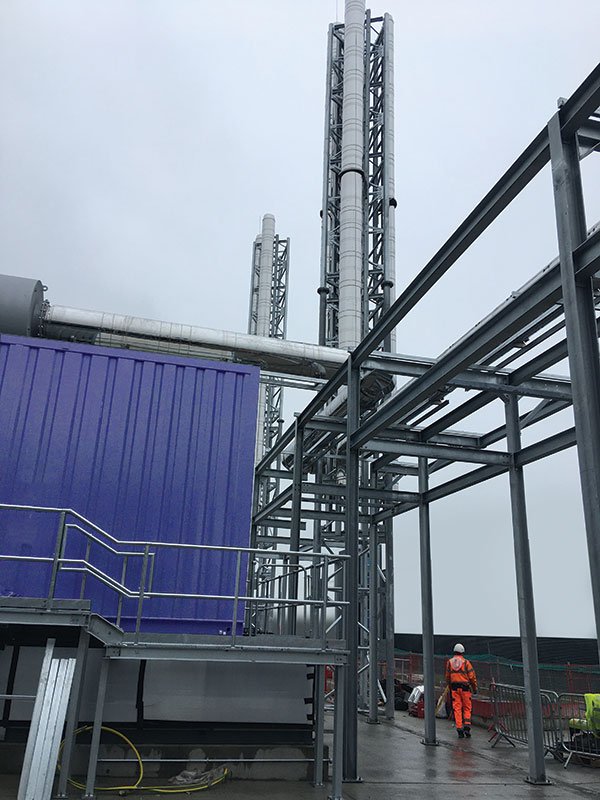

  • Fully designed, free standing structural supports available
Inner Liner
  • Stainless steel 304 or 316 (BA or 2B)
  • 0.5 / 0.7 / 0.9 / 1.2mm thick
  • Other thicknesses available on request
Outer Body
  • Stainless steel 304 or 316 (BA or 2B)
  • 0.5 / 0.7 / 0.9 / 1.2mm thick
  • Other thicknesses available on request
  • Ceramic blanket insulation 96kg/m3
  • Rockwool insulation 130kg/m3
  • Thickness ranging from 30mm / 50mm / 100mm
  • Ranging from 150mm to 1500mm
Fire Resistance
  • EN 1366 – 13 (Chimneys)
  • EI 120
  • EI 240

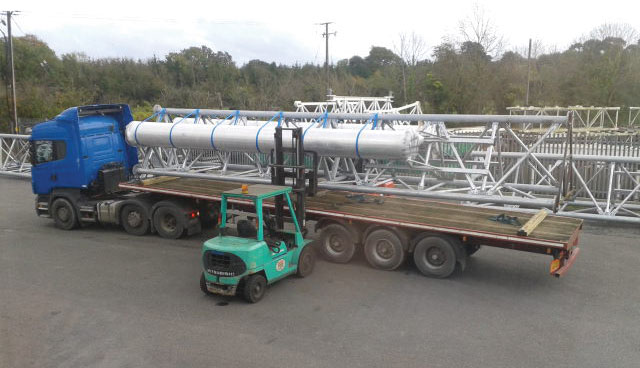

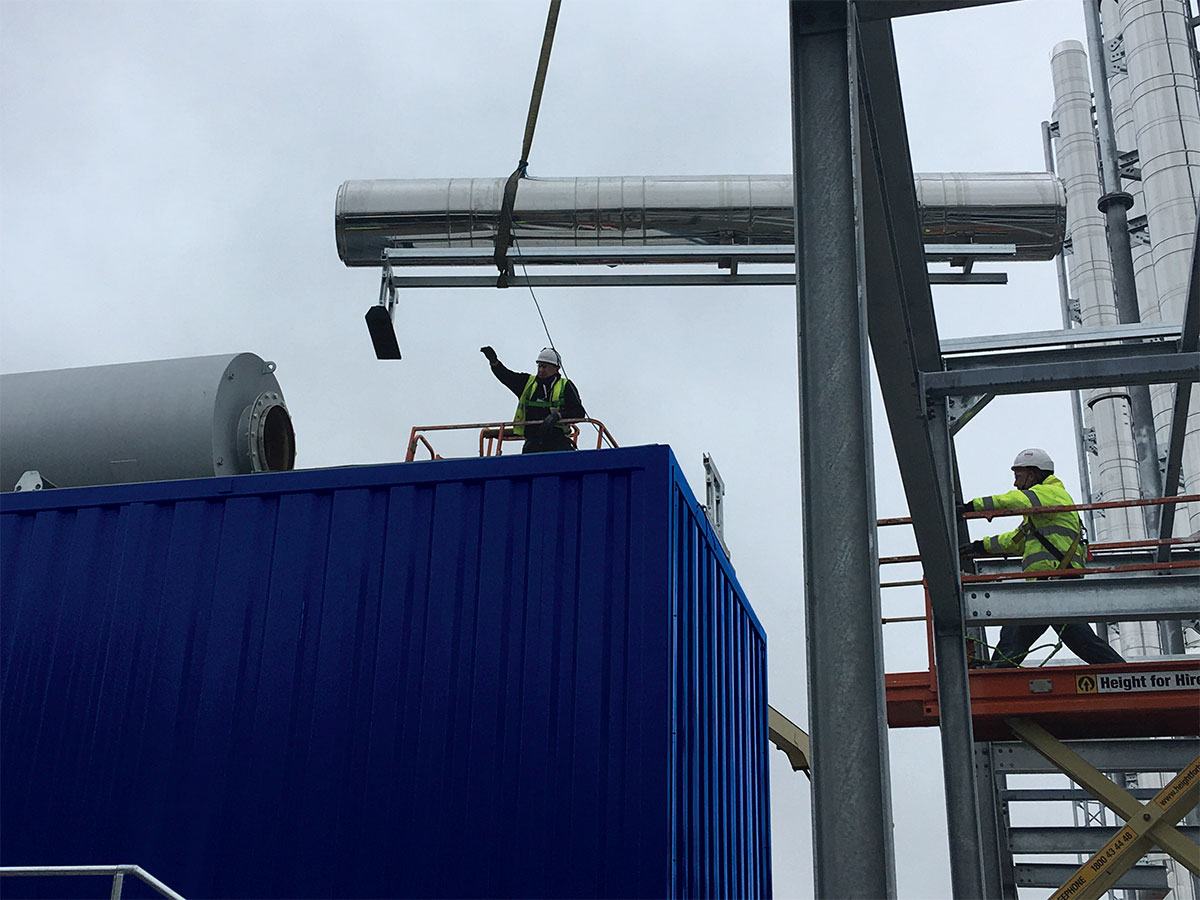

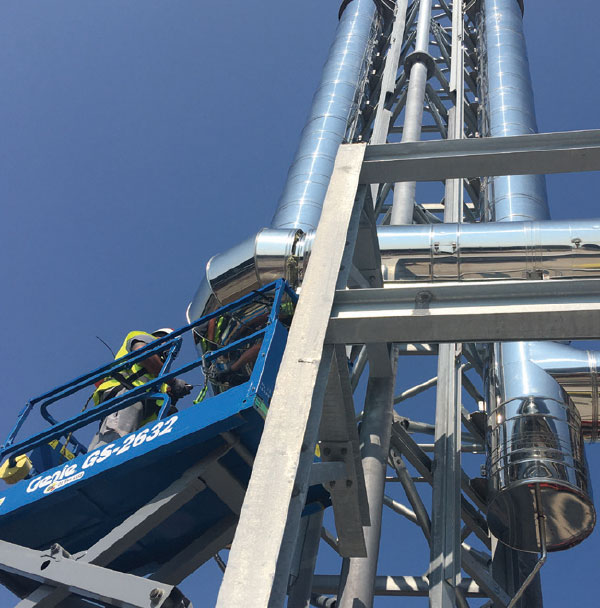

The system can be delivered to site pre-built on steel frames to make the site installation more efficient or supplied as individual sections and built on-site.

For more information about our insulated flue systems and solutions please contact our team.
